ESHX090BWH-01CP panel size is 9 inch lcd module and number of dots is 800x480 and 24 bit RGB interface, view angle is 12:00O'clock, high brightness 800cd/m2 , LCDdriving IC is HX8264+HX8664 and CTP IC is GT928
for more details, you can download datasheet from this linkESHX090BWH-01CP.pdf
A:Product Parameter
| Part No: | ESHX090BWH-01CP |
| Panel size | 9 inch tft |
| LCD type | TN |
| Module Size | 210.70*126.50*7.45 |
| Display Area | 198.00*111.70 |
| Number of Dots | 800*480 |
| View angle | 12:00 |
| Module Driver IC | HX8264+HX8664 |
| CTP Driver IC | GT928 |
| Interface Pins | 24bit RGB |
| LED Numbers | 4PCS |
| Luminance | 800cd/m2 |
| Operating Temp | -20~+70 |
| Storage Temp | -30~+80 |
| with or without TP | CTP |

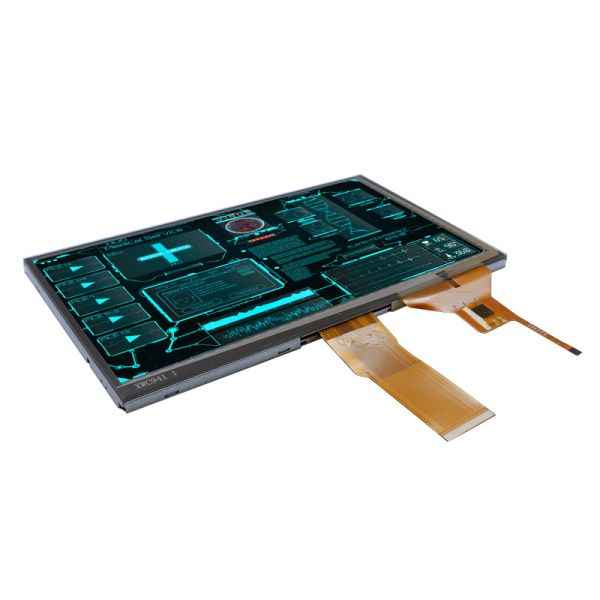

B:Product Picture
C:Drawing
.......................
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
